Product Details
Product Details
These Corner Profiles and Reveals add distinction to corners of buildings, window reveals, door reveals, soffits and much more. Our trims are specially selected to fit our cladding, for a faster and easier install. The Perforated Closures aide ventilation and prevent insect infestation.

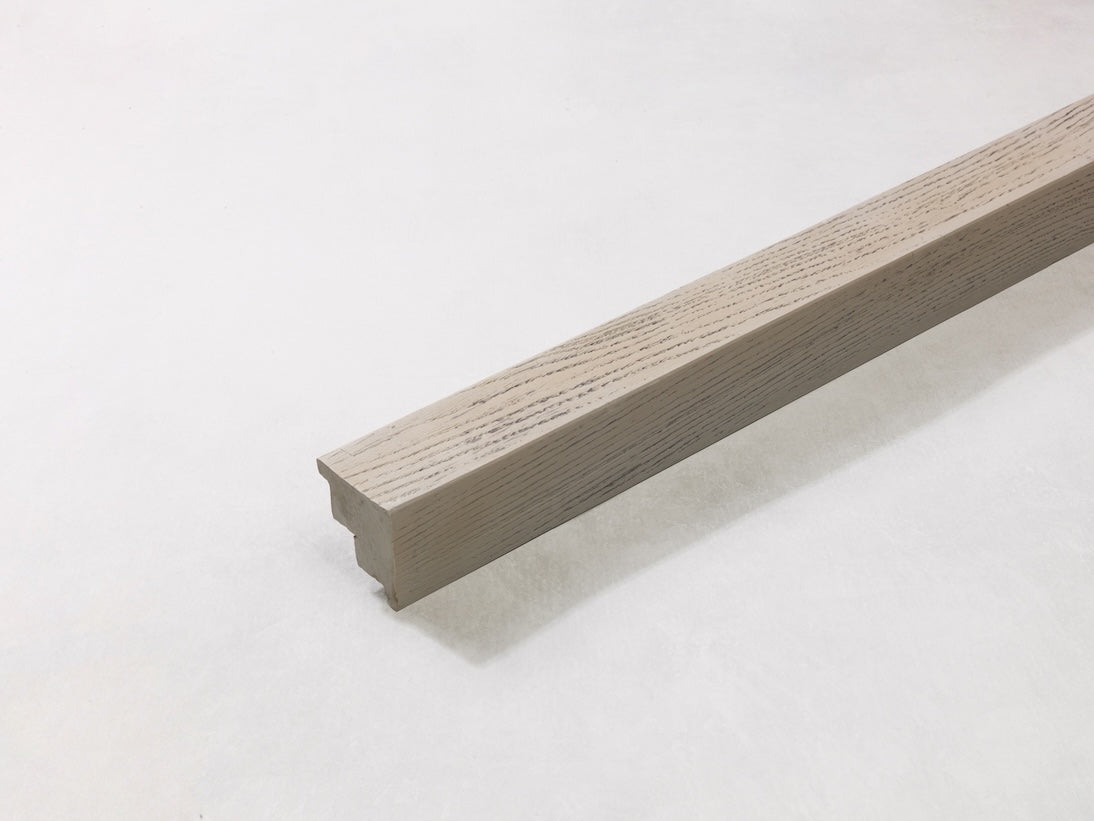

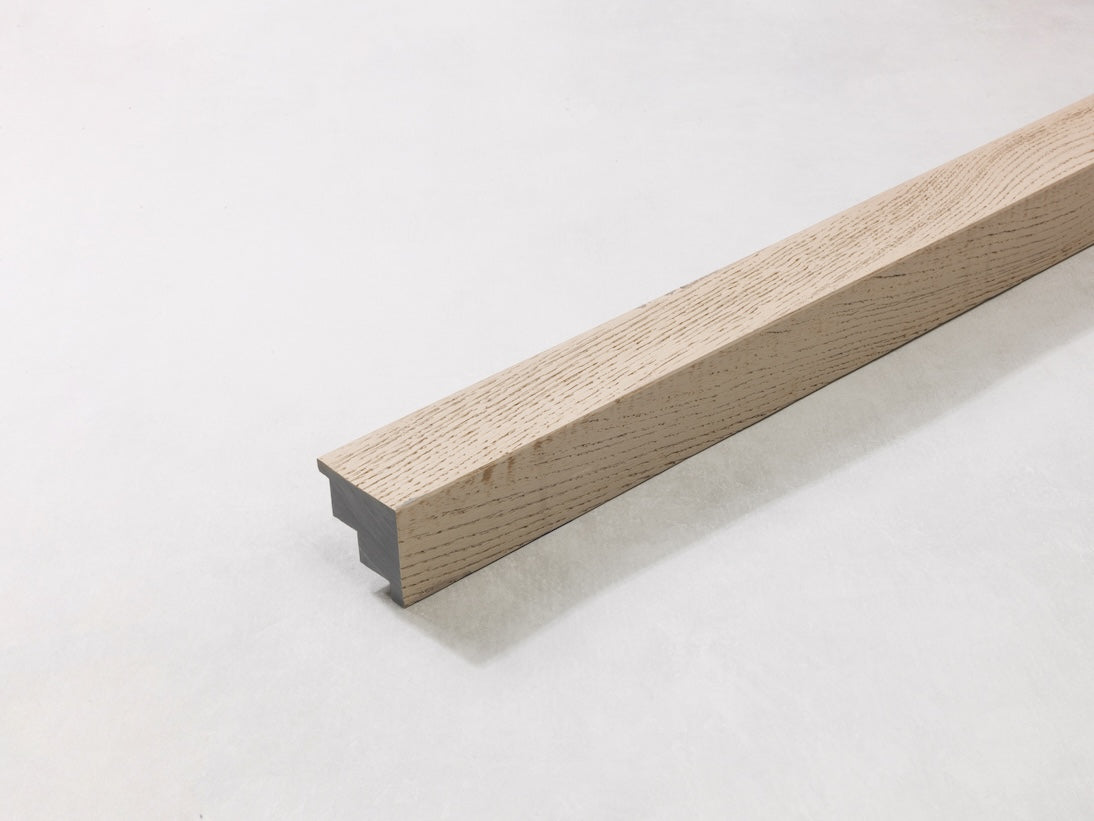

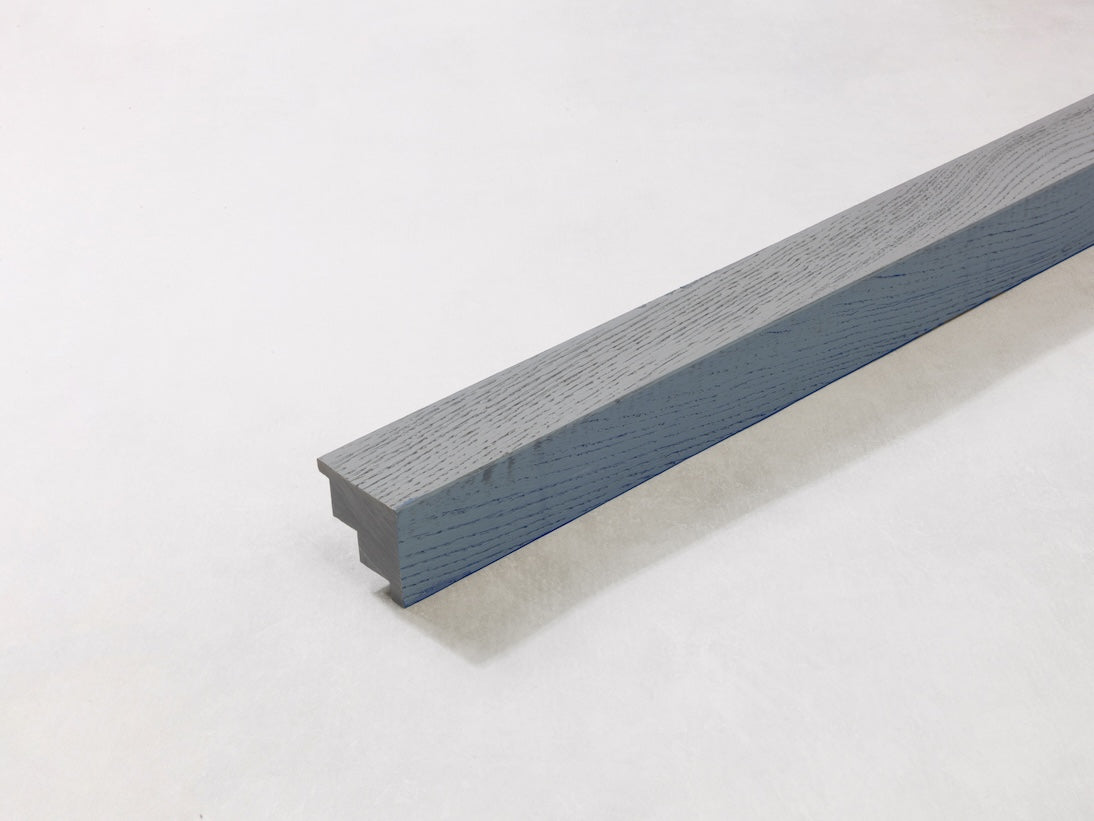

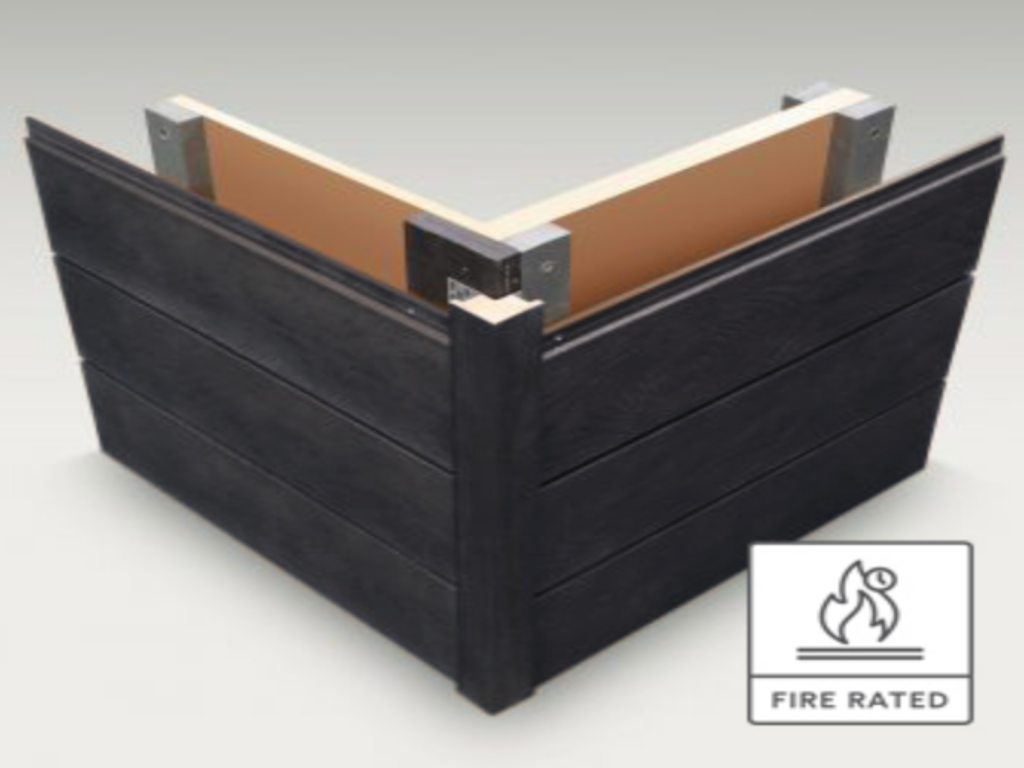

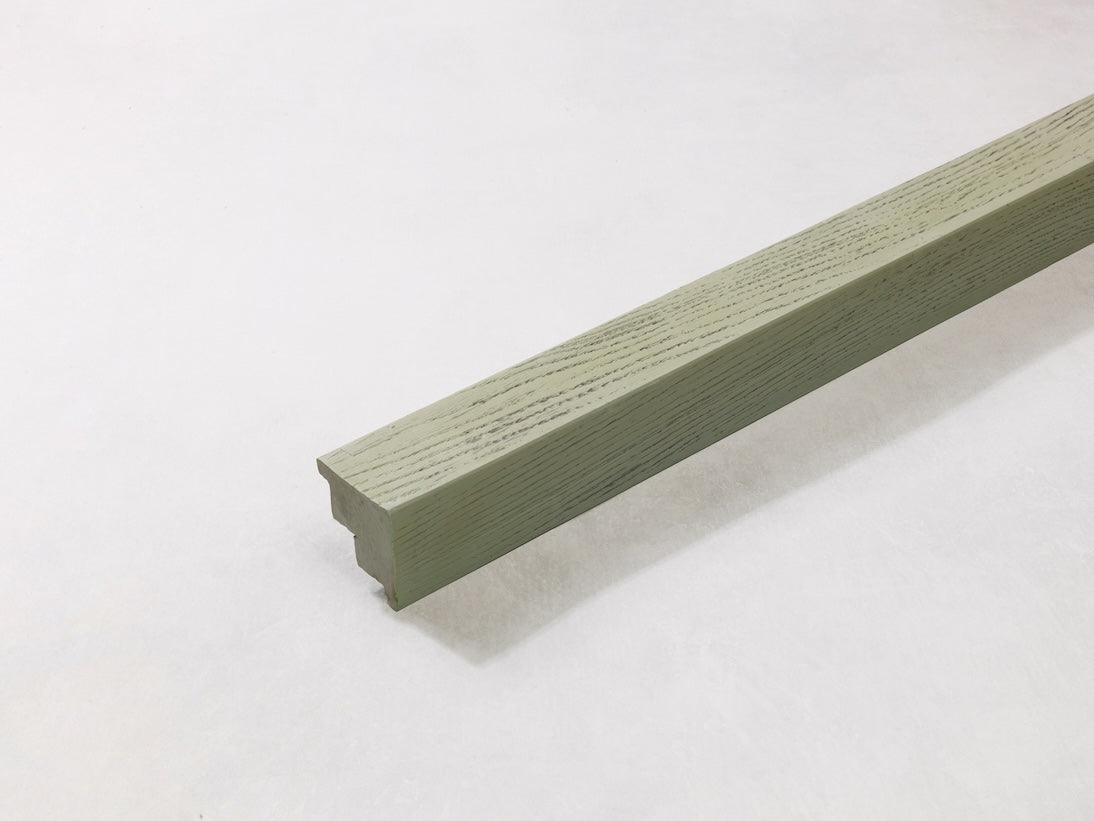

Shadow Line+ External Corners
Construction: Fire rated flexible polymer resin
Size: 50x50x3050mm
Colour options:
Antique Oak – MCFE50A

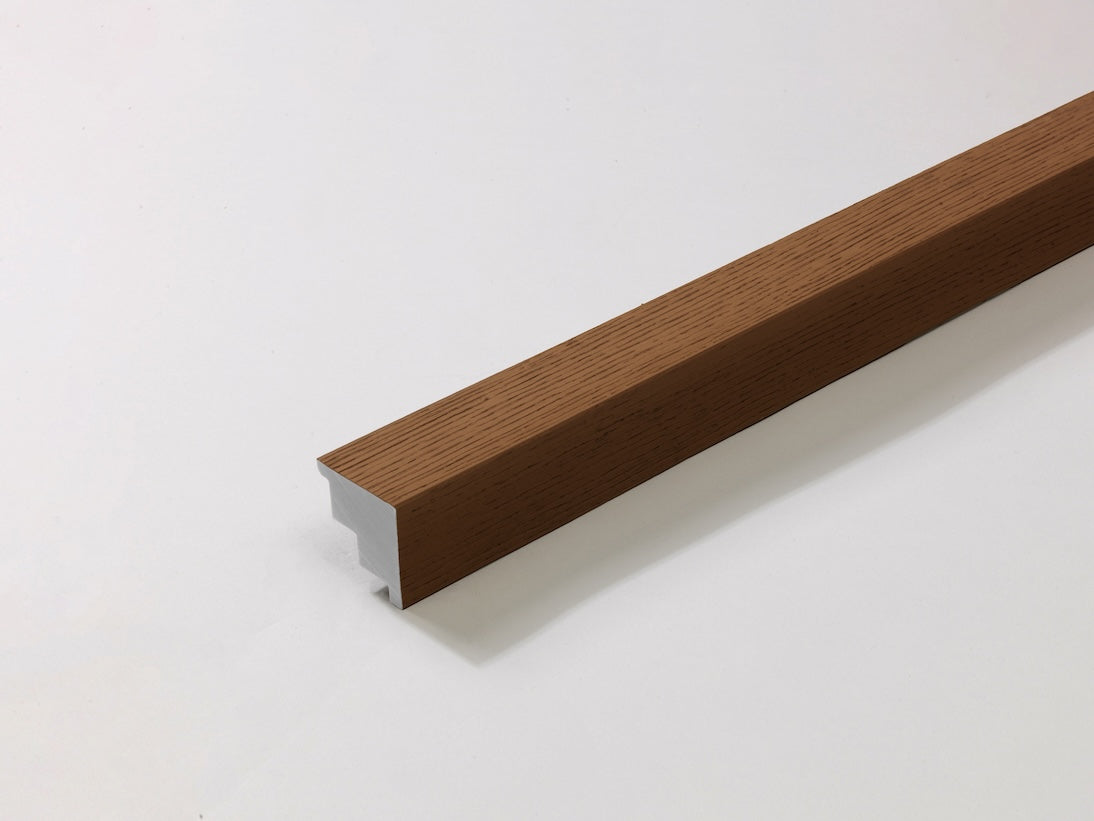

Coppered Oak - MCFE50C
Smoked Oak – MCFE50D

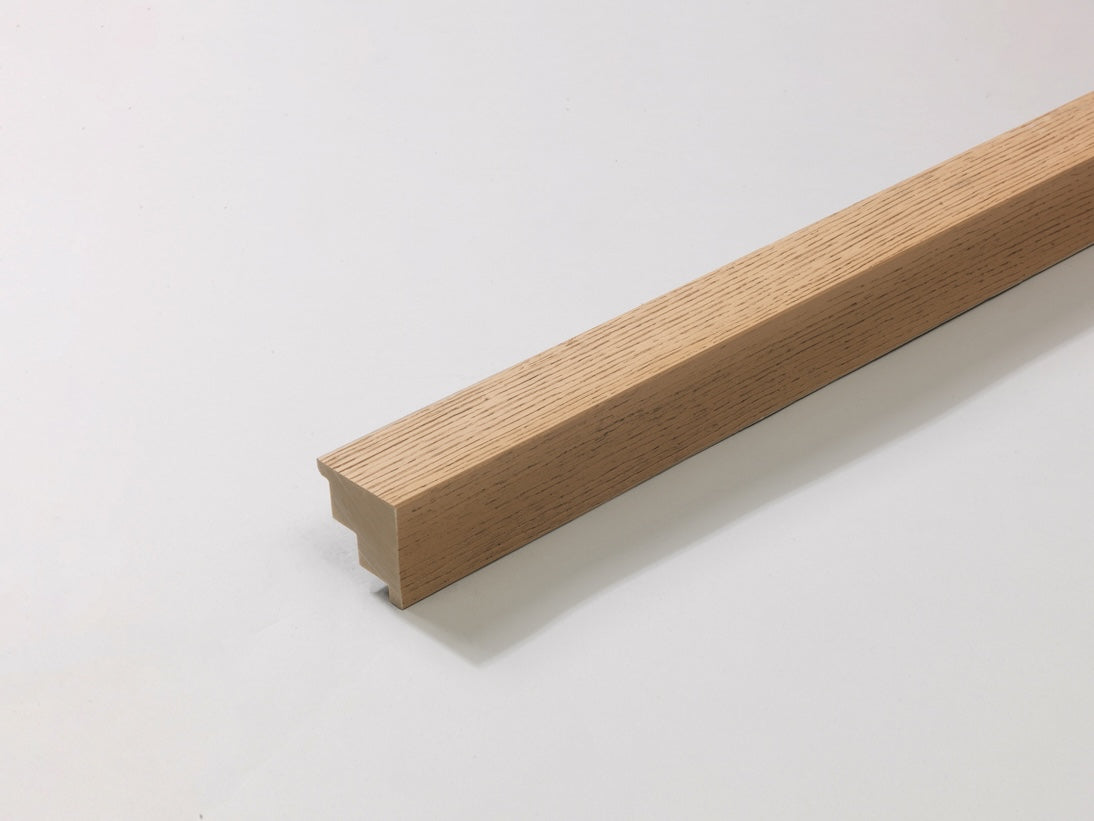

Golden Oak – MCFE50G

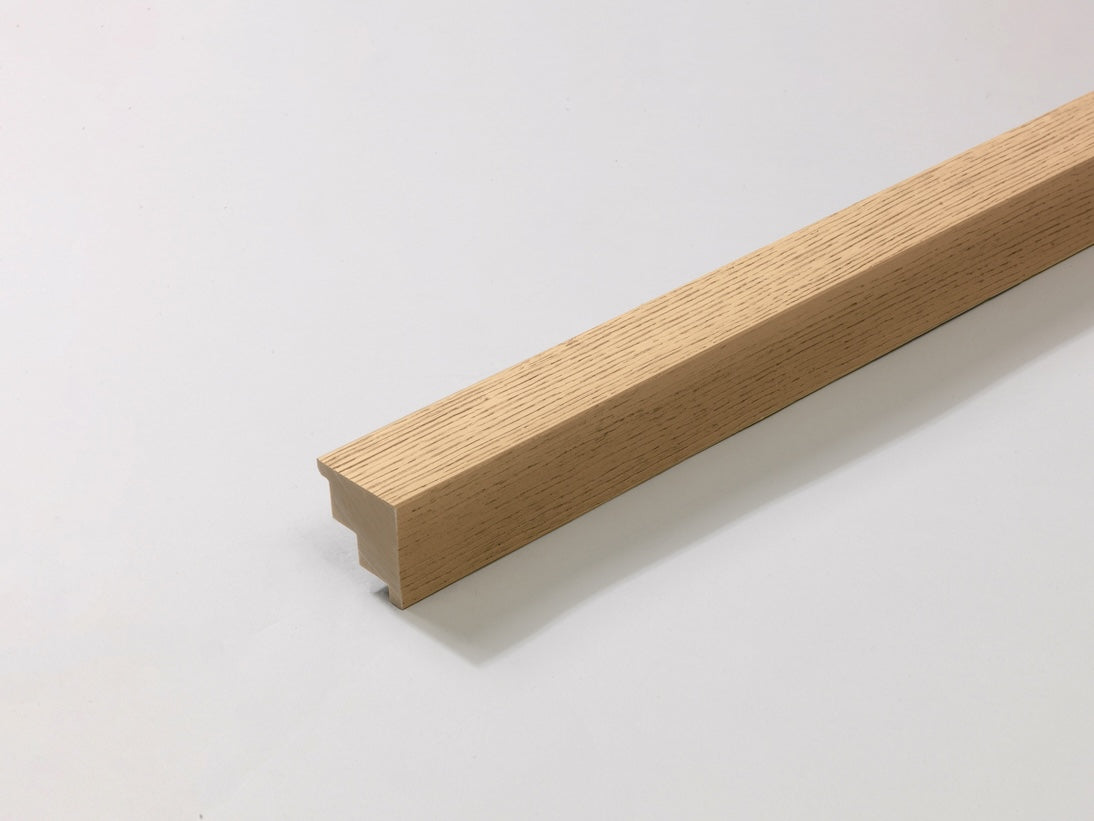

Ashwood – MCFE50H
Limed Oak – MCFE50L
Sage Green – MCFE50N

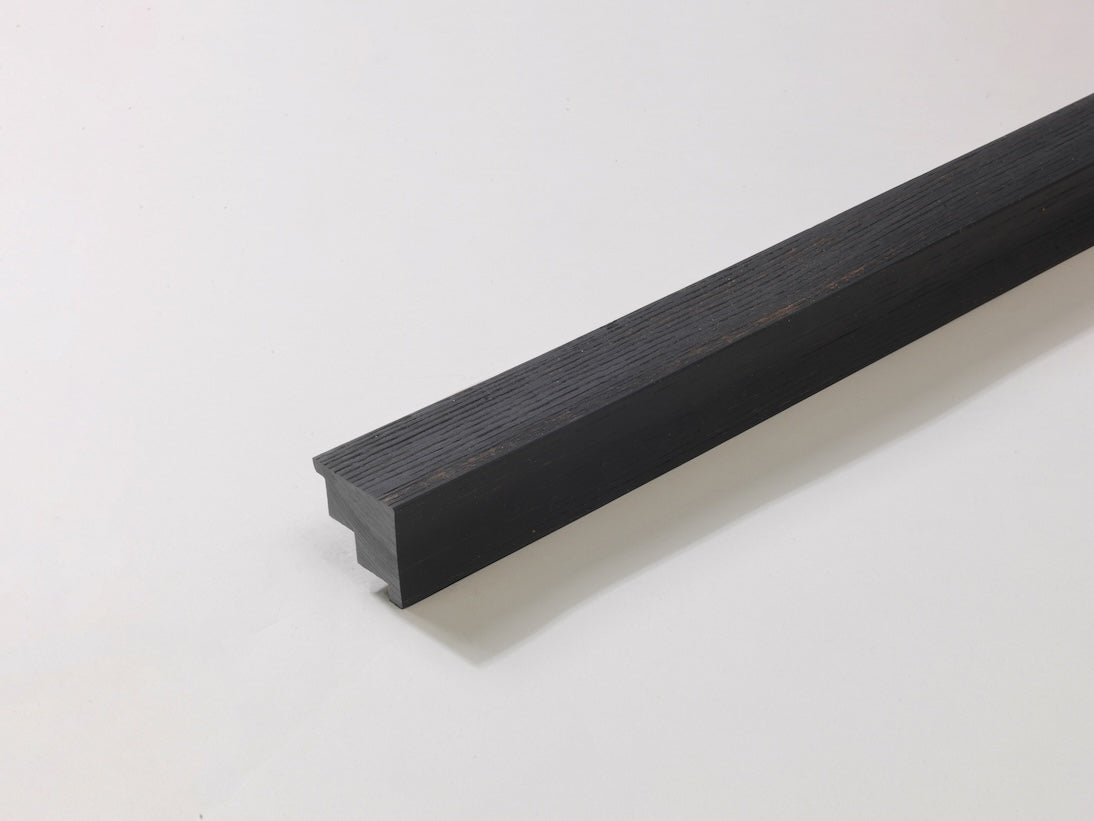

Burnt Cedar – MCFE50R
Salt Blue – MCFE50T
Anthracite – MCFE50X
Ebony Grey – MCFE50Y
Euroclass D fire rated profile used with the Shadow Line+ boards to finish off the Internal corner of a building, fixed with the perforated closure and 20mm fixings.

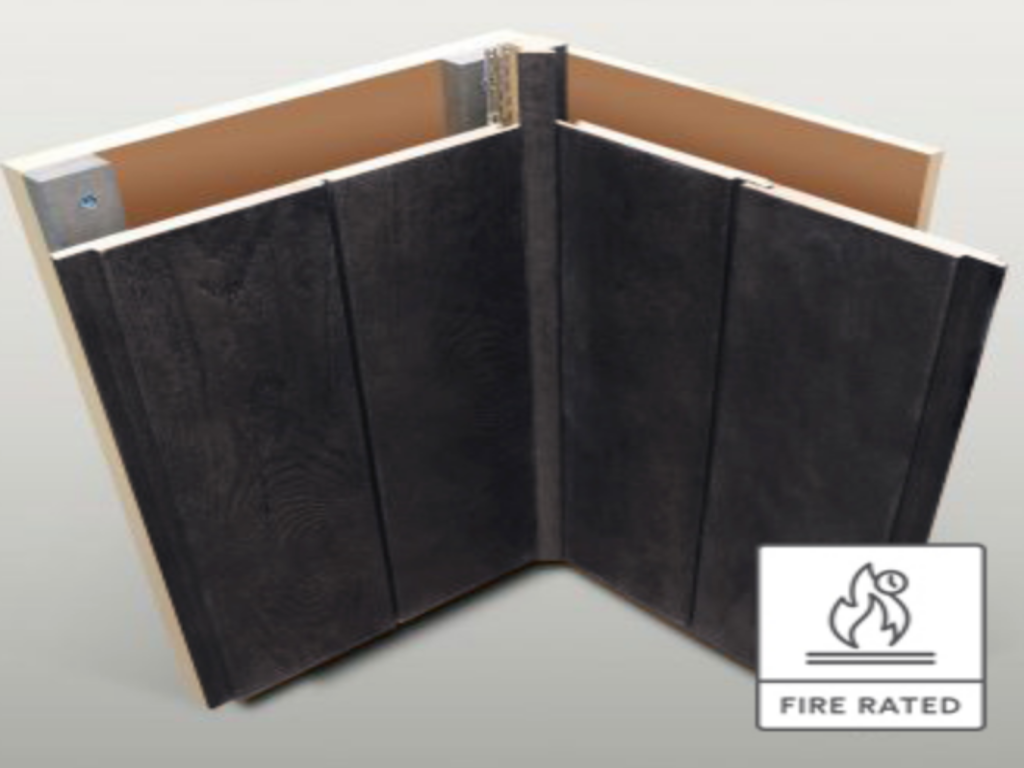

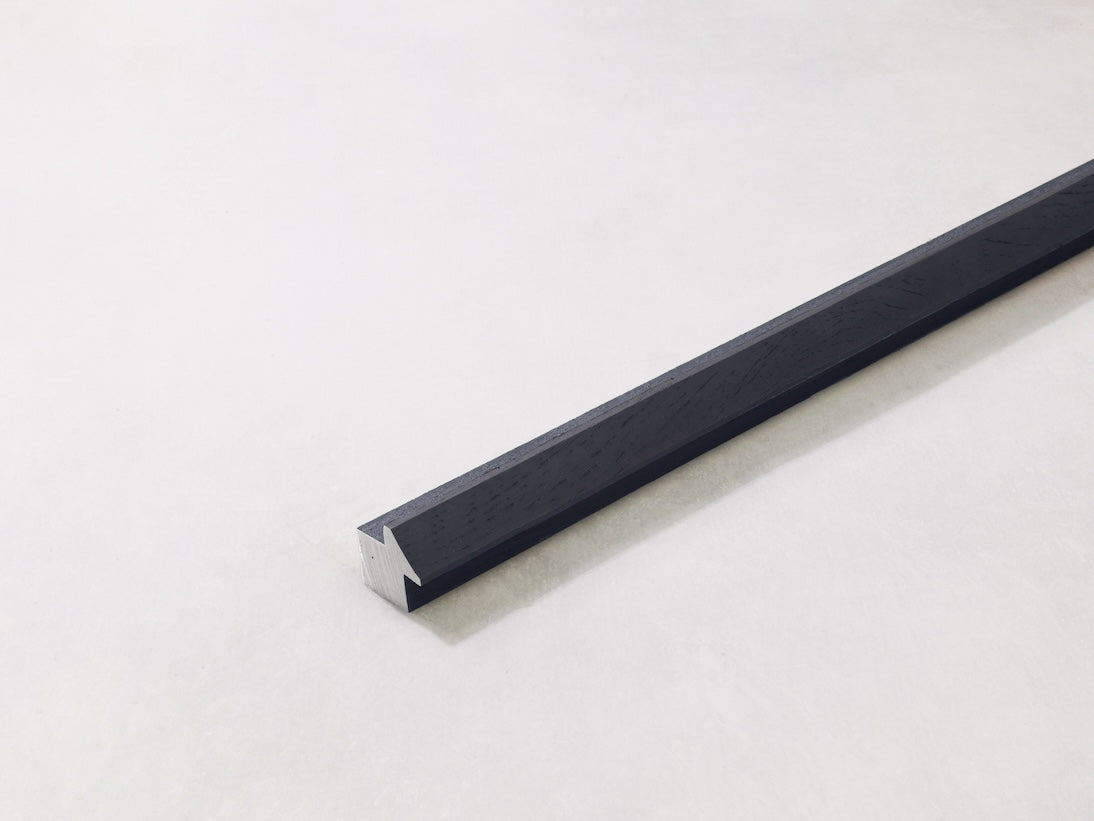

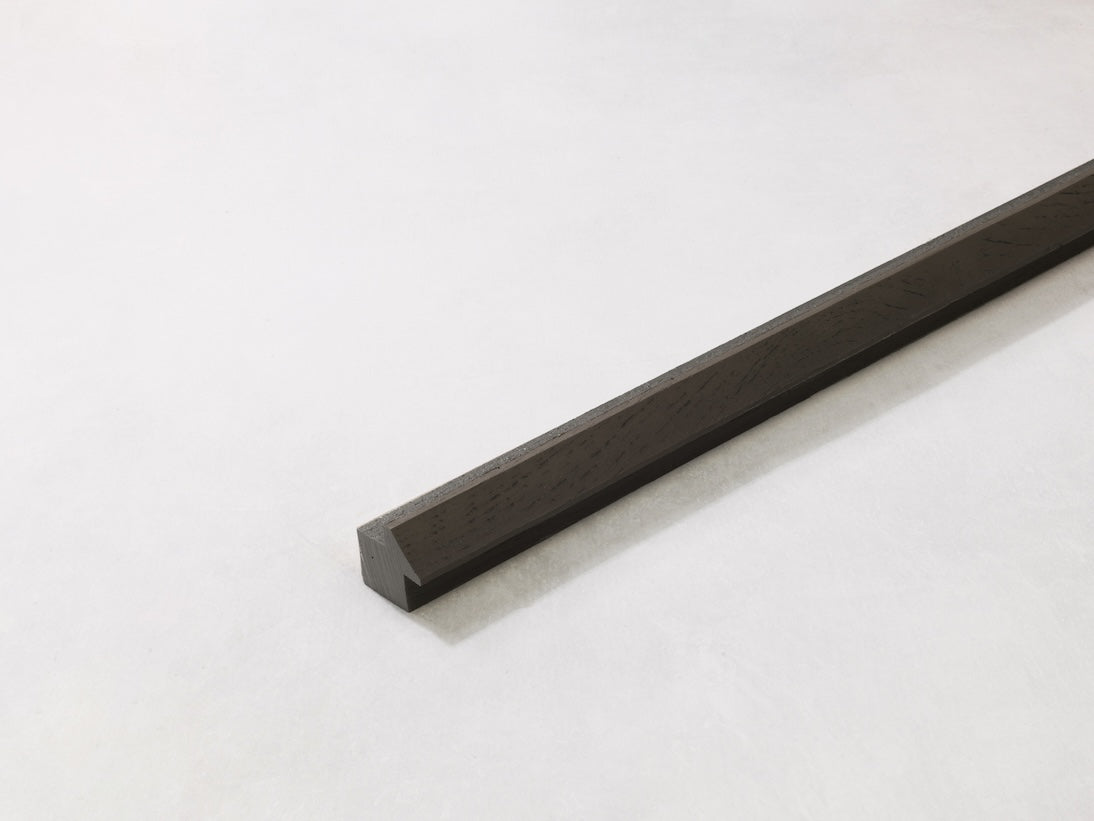

Shadow Line+ Internal Corners
Construction: Fire rated flexible polymer resin
Size: 38x38x3050mm
Colour options:

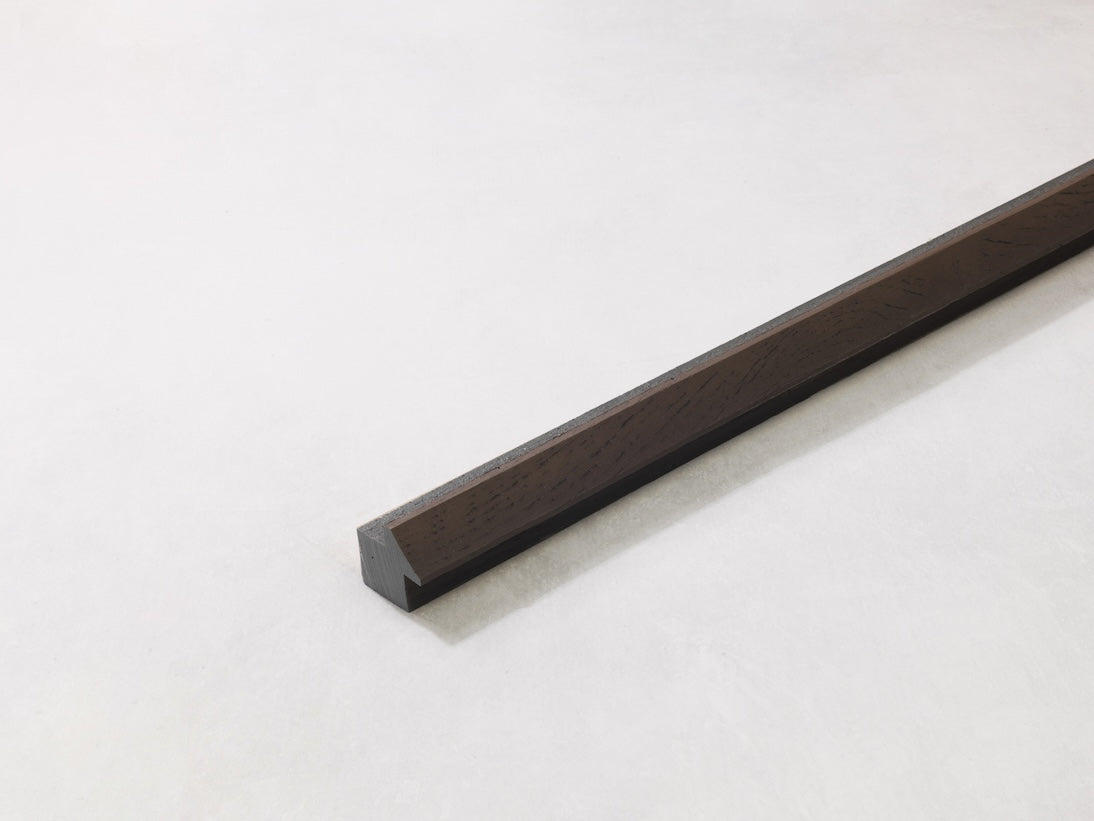

Antique Oak – MCFH38A
Coppered Oak - MCFH38C
Smoked Oak – MCFH38D
Golden Oak – MCFH38G
Ashwood - MCFH38H
Limed Oak – MCFH38L

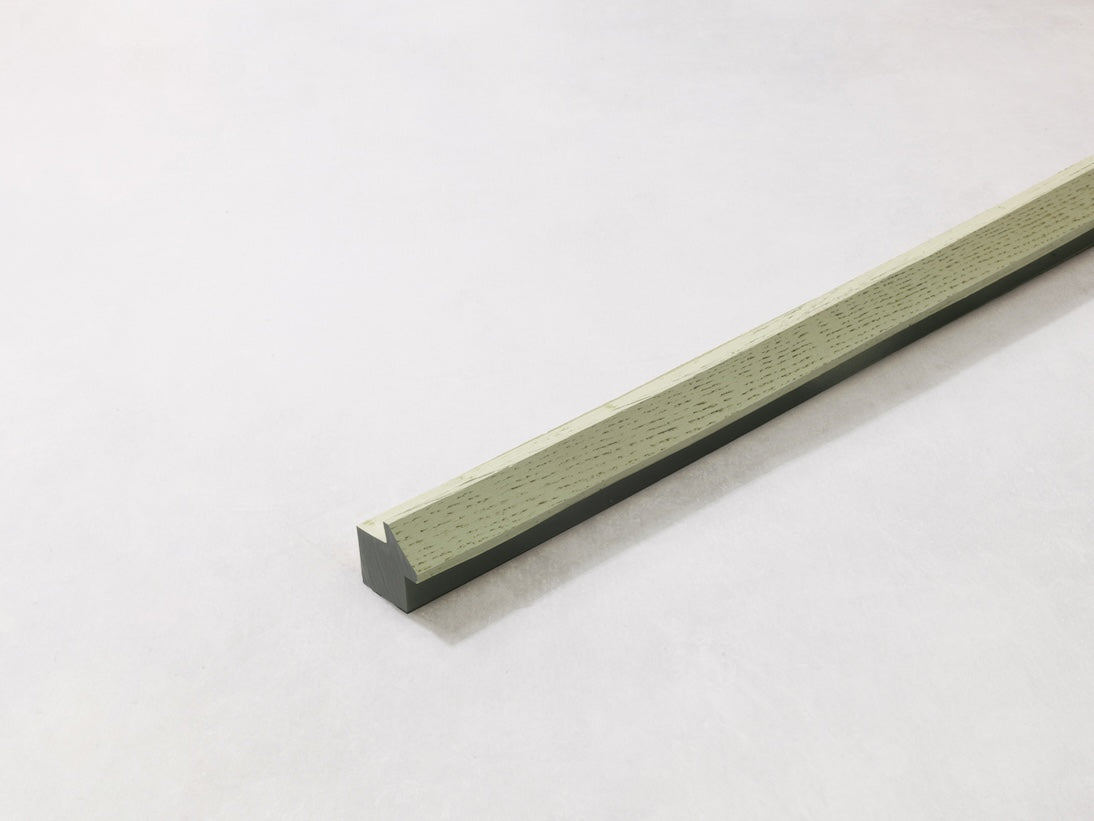

Sage Green - MCFH38N
Burnt Cedar - MCFH38R

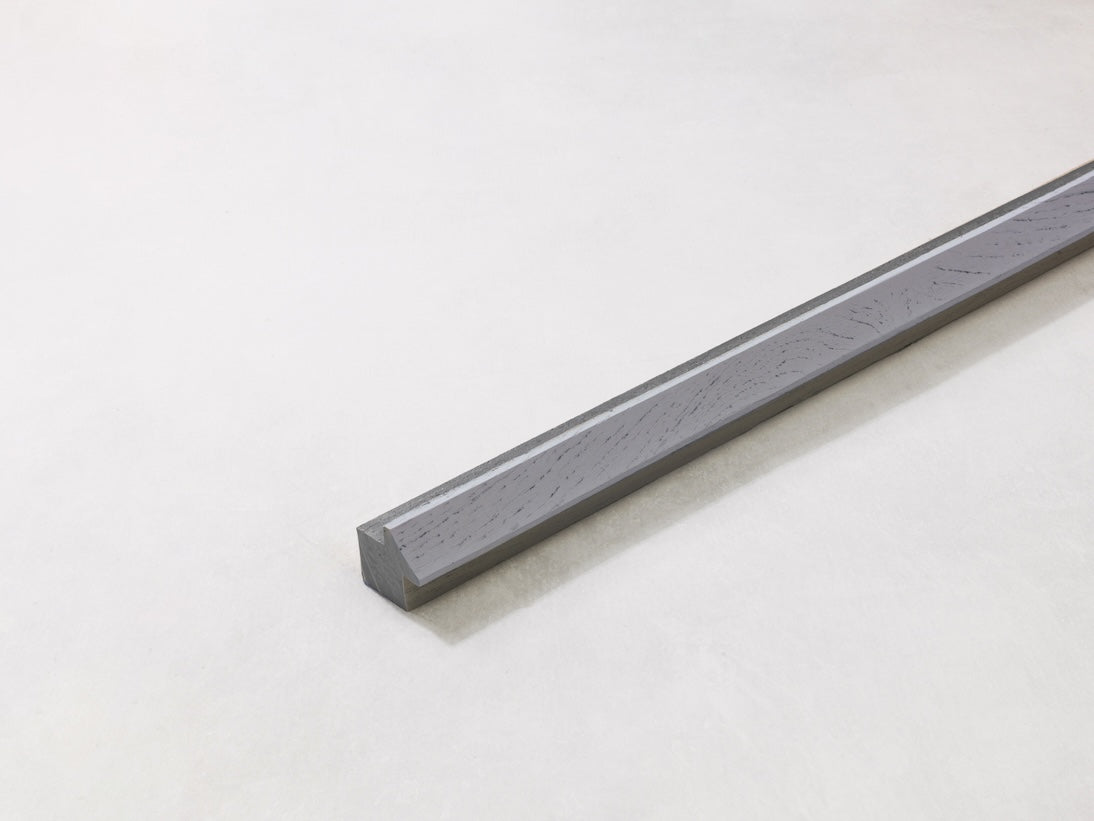

Salt Blue - MCFH38T
Anthracite - MCFH38X
Ebony Grey - MCFH38Y
Euroclass D fire rated profile used with the Shadow Line+ boards to finish off the Internal corner of a building, fixed with the perforated closure and 20mm fixings.

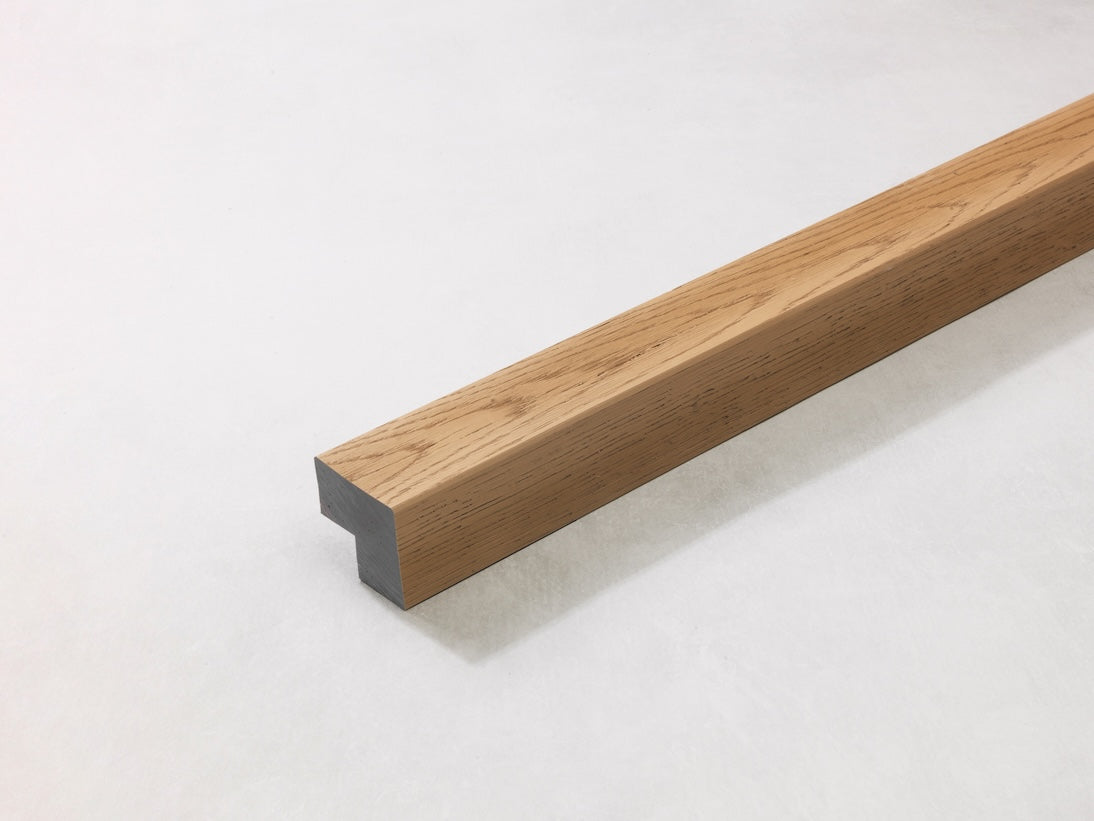

Board & Batten+ Square Corner Trim
Profile used with the Board & Batten to finish off the external corner of the building, and used around windows & doors. Fixed with the perforated closure and 20mm fixings.
Construction: Polymer Resin Core / Lastane surface
Size: 50x50x3050mm
Colour options:
Antique Oak – MCPTF50A
Coppered Oak - MCPTF50C
Smoked Oak – MCPTF50D
Golden Oak – MCPTF50G

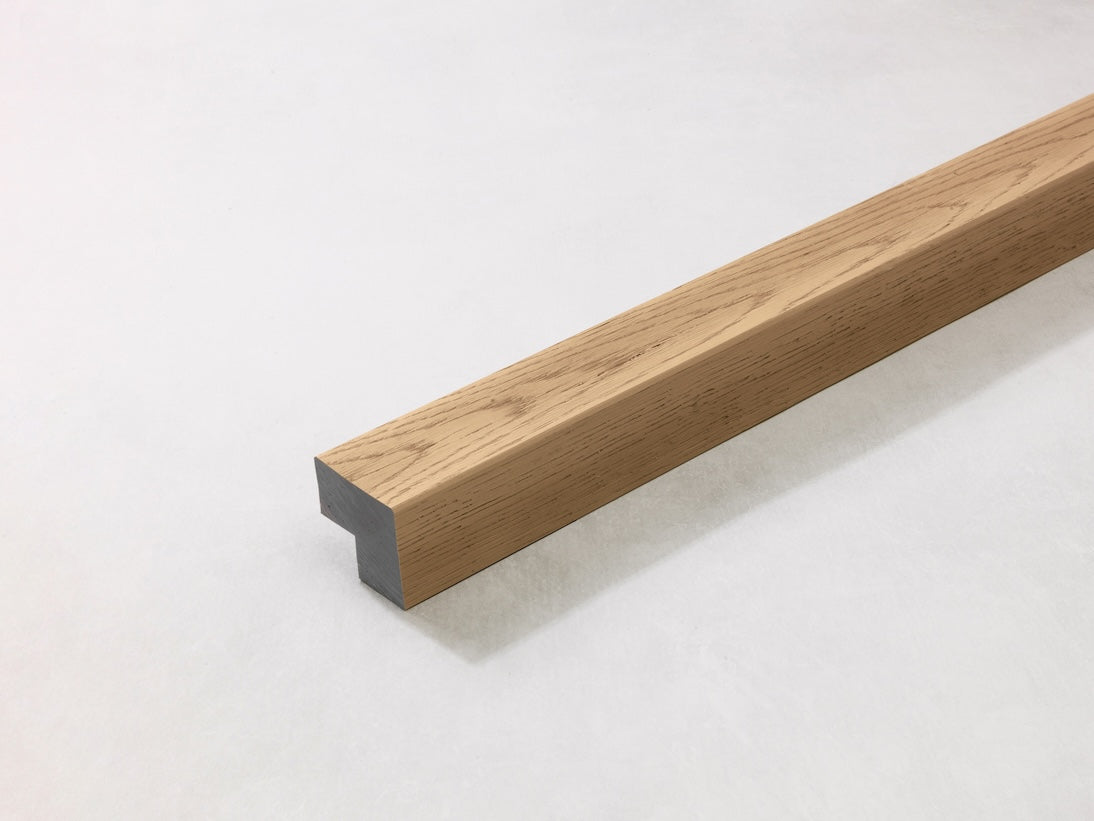

Ashwood – MCPT50H
Jarrah – MCPTF50J
Limed Oak – MCPTF50L
Burnt Cedar – MCPTF50R
Anthracite – MCPTF50X
Ebony Grey – MCPTF50Y
